Abri retractable umbrella by Vermobil

Abri retractable umbrella by Vermobil

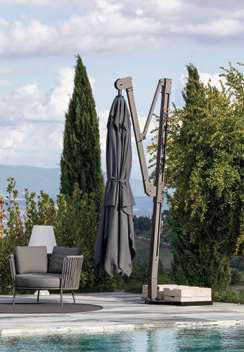

The Abri retractable umbrella by Vermobil is designed to offer an elegant and functional solution for shading outdoor spaces. Thanks to its side pole and retractable arm, it allows you to fully utilize the space under the canopy, making it perfect for outdoor dining tables, garden lounges, or poolside relaxation areas.

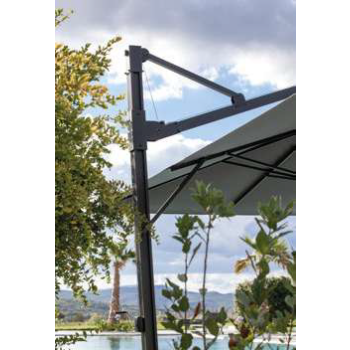

The structure is made of 92 x 92 mm H-shaped aluminum tubing with a thickness of 2 mm, a material designed to ensure solidity and durability over time. The retractable arm, also made of aluminum with grooves, ensures stability and support for the cover.

The 30 x 15 mm quick-release aluminum ribs make it easy to handle and contribute to the awning's stability. The crank and pulley opening system makes it easy and smooth to use, while the nautical-grade braided steel rope ensures high wear resistance.

The galvanized steel weight base is designed to accommodate grit-coated concrete tiles, ensuring the stability of the umbrella even in the most exposed outdoor installations.

Available in the sizes 300 × 300 cm and 300 × 400 cm, with a frame available in two different colors and a canopy in three color variants, the Abri umbrella represents a versatile solution for furnishing gardens, terraces and pool areas with style.

Dimensions:

• 300 × 300 cm – height 310 cm

• 300 × 400 cm – height 340 cm

Finishes:

Product strengths

• Sturdy and durable aluminum frame and retractable arm

• Side pole to make the most of the space under the umbrella

• Opening system with crank winch and pulleys

• Nautical grade steel braided rope for added strength

• Quick-release aluminum ribs with grooved finish

• Stable and durable galvanized steel weight base

• Structure available in two colors

• Cover available in three color variations

• Ideal for garden, terrace and poolside

For further information click on "TECHNICAL DATA SHEET".

Technical features

• Type: Retractable arm umbrella with side pole

• Model: Abri

• Brand: Vermobil

• Use: Outdoor furniture

• Ideal for: Garden, terrace, poolside

Available sizes

• 300 × 300 cm – height 310 cm

• 300 × 400 cm – height 340 cm

Structure

• Pole and arm: H-shaped aluminium tube 92 × 92 mm – 2 mm thick

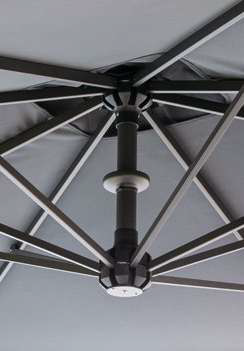

• Ribs: Aluminum 30 × 15 mm – thickness 1.5 mm with quick release

• Caps: PE plastic

• Structural details: Steel

• Collar and crown: ABS plastic

• Tip: Nylon

Opening system

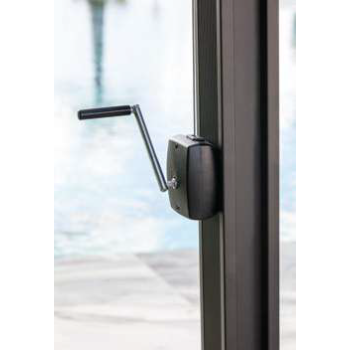

• Hand crank winch with pulleys

• Steel braided rope for nautical use

Base

• Galvanized steel weight base

• Frame weight: 19 kg

Ballast

• 200 kg: 14 grit-coated concrete tiles (50 × 50 × 4 cm)

• 400 kg: 20 grit-coated concrete tiles (50 × 50 × 4 cm)

Colors

• Structure available in 2 colors

• Cover available in 3 color variations
