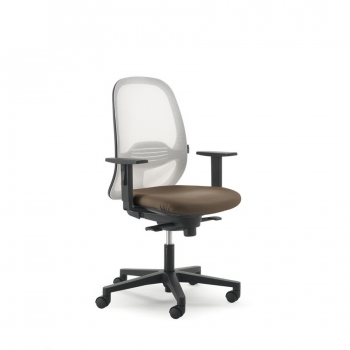

Andy office chair by Olivo & Groppo with mesh backrest
The Andy office chair by Olivo & Groppo. A technical chair that offers highly functional aesthetic and practical solutions. Available with a breathable mesh backrest and padded seat. A key design detail of the backrest is the complete lack of visible fastening elements, enhancing its design and showcasing the research behind it, making this generously sized chair a solution to both technical and aesthetic challenges.
Dimensions:
-
cm: L.70 (W. seat 49 cm)xD.70xH.96-108xH. seat 42-54 (H. armrest "OPTIONAL" 64)
Optional:
-
UNDER-SEAT MECHANISM: Syncro ME0013, Syncro with seat slider ME006T
-
ARMRESTS: 2D white nylon, 3D white nylon, 2D black nylon with black PU top, 3D black nylon with black PU top
-
BASE: White Nylon
-
WHEELS: Braked, braked and rubberized, "RING" braked and rubberized
Synchro mechanism
Synchro mechanism with seat slider

Armrests

Wheels
Available upon request: 5-star base in polished aluminum with all types of castors available for this model; 4D or 5D armrests in white nylon with black PU top, 2D, 3D armrests in black nylon, 4D, 5D armrests in black nylon with black PU top.
Characteristics:
Internal seat structure in recycled PP loaded with 20% fiberglass with longitudinal steel reinforcements, size 10x10x1.5 mm, overmolded. Seat casing in PP, black or white. Padding in fireproof polyurethane foam cut from a block, density 40 kg/m3, thickness 40 mm. Backrest supporting frame in PA6 nylon loaded with 30% fiberglass with PS padding frame, black. Fixed backrest with height-adjustable lumbar support, 100 mm stroke. Adjustable armrests with button operation from 2D to 5D, in PA6 nylon loaded with 30% fiberglass or in polished die-cast aluminum, all with soft PU tops. a) Synchro mechanism with two levers in pressed steel, 5 locking positions, 20° backrest oscillation, 9° seat oscillation, anti-shock safety system for the backrest and spring tension adjustment for the
Tilt adjustment via knob. b) Synchro mechanism + two-lever slider in pressed steel, 4 locking positions, 22° backrest tilt, 13° seat tilt, anti-shock safety system for the backrest and spring tension adjustment for tilt adjustment via knob. Seat slider with return spring with 72 mm travel and 6-position locking via lever. 5-star base in PA6 nylon with 30% fiberglass, black, with steel reinforcement ring, ANSI-BIFMA certified. Ø 50 mm braked nylon casters.
FOR FINISHES SELECT TECHNICAL DATA SHEET
